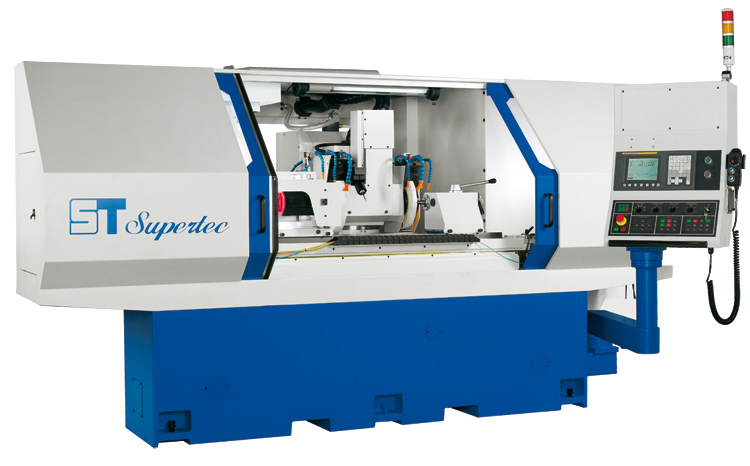

CNC CYLINDRICAL GRINDER 2 WHEEL
- CNC Cylindrical Grinders for between centers and chucking operations. 3/4 CNC axes.Swivel Twin wheelhead. 3-in-1 design: Plunge-Angular-ID.
- Heavily ribbed box-type base made in Meehanite casting. Optimum distance between the guideways offers excellent table support to increase Z axis positioning accuracy and repeatability.
- Rigid-designed workhead with precision bearings and variable spindle speeds.
- Strong casting tailstock is designed to mount MT3/MT4 or optional MT5. Optional hydraulic tailstock with pedal is available.
- The wheelhead runs on double V guideways hand scraped with Turcite coating by a AC FANUC servo motor,0.001linear feedback and precision ballscrew.
- Wheel Spindle with a combination of hydrostatic and hydrodynamic bearings surrounded by a high pressure oil film eliminates metal to metal contact.
- Box type rigid work table travelling on a cushion of oil. The table is fully supported in the full travel avoiding overhang. Z-axis positioning accuracy is assured with an AC FANUC servo motor and high precision ball screws.
- The machines can be customized with a wide selection of systems for automation as electronic probe, automatic OD sizing, dynamic wheel balancing, etc.
- FANUC control with programs for standard applications.
| DESCRIPTION / MODEL | GU-650 | GU-1000 |
|---|---|---|
| General Capacity | ||
| Distance between centers | 600 | 1000 |
| Swing over table | 310 | |
| Max. grinding diameter | 300 | |
| Max. load held between centers | 100 kgs | |
| Grinding wheel | ||
| Diameter x width x bore LH wheel | 355 x 50 x 127 opcional 405 x 50 x 127 | |
| Diameter x width x bore RH wheel | 305 x 25 x 127 | |
| Wheel speed | 2065 rpm | |
| Max. peripheral speed | 1800 m/min | |
| Wheelhead | ||
| Sliding angle | 180° | |
| Max. increment speed | 10 m/min | |
| Infeed travel | 250 | |
| Min. increment infeed | 0,001 | |
| Workhead | ||
| Spindle speed (variable) | 30~350 rpm | |
| Center taper | MT 4 (opt. MT 5) | |
| Spindle type | Fixed & Rotary | |
| Diameter of bore | 23 | |
| Tailstock | ||
| Center taper | MT 3 | |
| Quill travel | 25 | |
| Table | ||
| Rapid feedrate | 10 m/min | |
| Min. increment infeed | 0,001 | |
| Swivelling angle CCW | 9° | 7° |
| Swivelling angle CW | -9° | -7° |
| Motor | ||
| Wheel spindle motor | 5 HP | |
| Workhead servomotor FANUC | 1.5 Kw | |
| Coolant pump | 1/4 HP | |
| Lubrication pump | 1/4 HP | |
| Infeed (X-axis) motor FANUC | 1.2 kW | |
| Infeed (Z-axis) motor FANUC | 1.2 kW | |
| Machine | ||
| Net weight (semi enclosure) | 5600 kgs | 5800 kgs |
| Gross weight | 6420 kgs | 7500 kgs |
