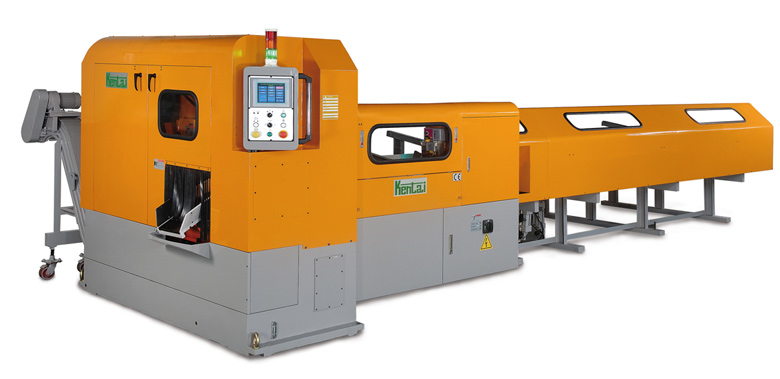

KTC-130: HIGH SPEED CARBIDE SAWING MACHINES
WITH CNC CONTROL
- High production fully automatic Sawing machines KTC series for ferrous and non ferreous materials.

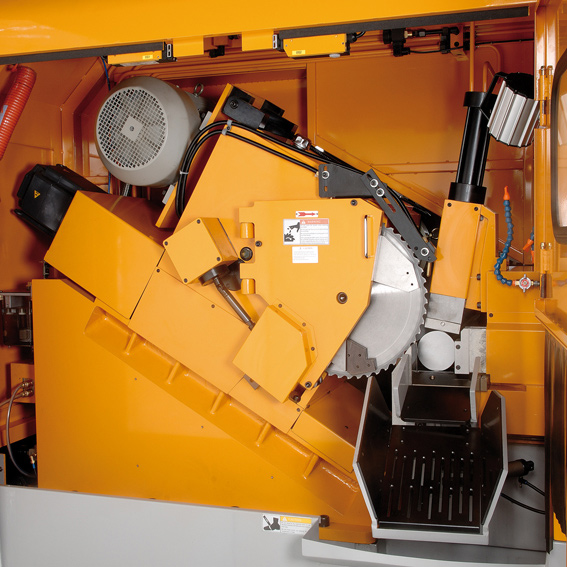

- Heavy duty pivot arm saw head. Servo feed saw head optional

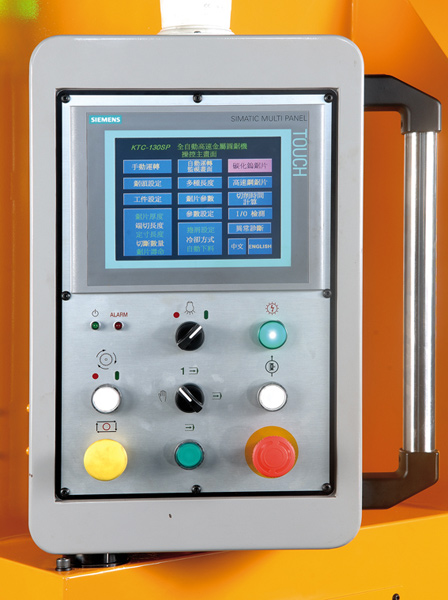

- PLC control 7.7” color touch screen with alarm message display
- Infinitely variable cutting speeds

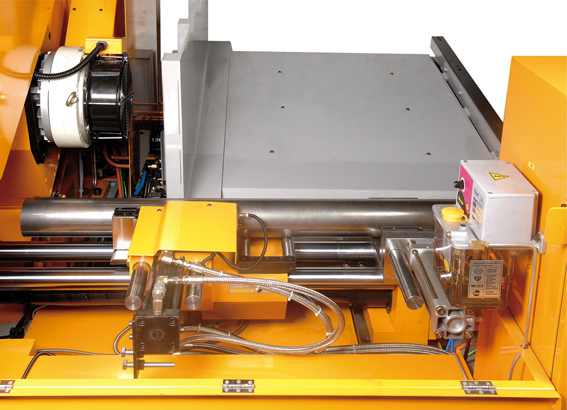

- GFC Gripper feed carriage system with servo motor and C5 grade ball screw
- Auto-loading magazine for round and square bars with optional unloading device
- Real time monitoring
- Steel brush synchronized to clear out the chips on the saw blade
| DESIGNATION | KTC-130SP | |
|---|---|---|
| CUT-OFF CAPACITY | ||
| Round Bar | Ø 20-130 mm | |
| Square Bar | 20-100 mm | |
| SAW HEAD & SPINDLE | ||
| TCT Disc MD | Ø 360/425 x 2.7 t mm | |
| Rotation Speed | 10-160 rpm | |
| MOTOR | ||
| Spindle motor | 15 kW 4 polos | |
| HYDRAULIC EQUIPMENT | ||
| Working pressure | 70 bar | |
| Tank capacity | 100 liters | |
| PNEUMATIC EQUIPMENT | ||
| Working pressure | 4-6 bar | |
| Electrical power | 27 kW | |
| DIMENSIONS & WEIGHT | ||
| Dimension | 7280 x 2990 x 1908 | |
| Net weight | 4000 / 1210 Kg. | |
