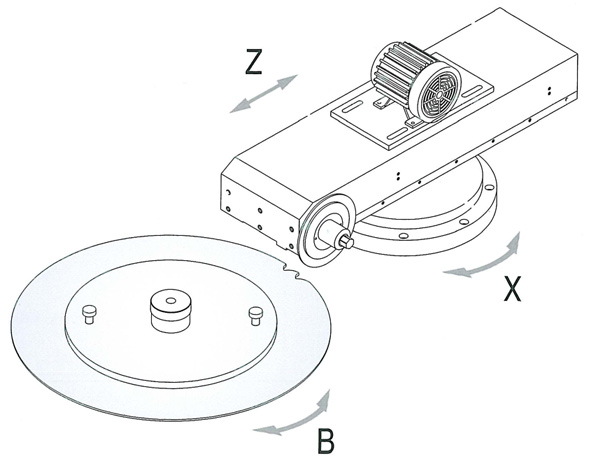

CNC Automatic Saw Blade Grinding Machines 2 & 3 axes CNC
- Conversational CNC Control System
- Grinding Wheel auto dressing
- Grinding Teeth Profile type A-B-BW and C
- KNC-500 & 500 CBN 2- axes CNC
- KNC-500C3 3- axes CNC
| DESCRIPTION | |
|---|---|
| Saw Blade diameter | Ø70-Ø500 mm |
| Max. Pitch | 24 mm |
| Teeth Range | 10 - 998 |
| Max. Saw Blade Thickness | 10 / 6 mm |
| Cutting Angle Range | 0,01º - 40º |
| Feeding Speed | 20-180 / 2-60 teeth/min |
| Wheel diameter | Ø120- Ø230 / Ø2-60 mm |
| Wheel bore | Ø32 mm |
| Grinding Wheel motor | 1,5 kW |
| Servo motor (Z-Axis) | 1 kW |
| Servo motor (B-Axis) | 1 kW |
| Coolant pump motor | 0,2 kW |
| Coolant flow | 71 / 75 l/min |
| Coolant pressure | 1,2 / 9 bar |
| Coolant tank capacity | 250 / 250 l |
| Net weight | 1300 / 1500 Kg |
| Gross weight | 1650 / 1850 Kg |
| Packing dimensions | 2140 x 1930 x 1730 mm |
