KTC-150: HIGH SPEED CARBIDE SAWING MACHINES
WITH CNC CONTROL

Photo of KTC 150

Descargar Tabla
de Especificaciones

Image gallery

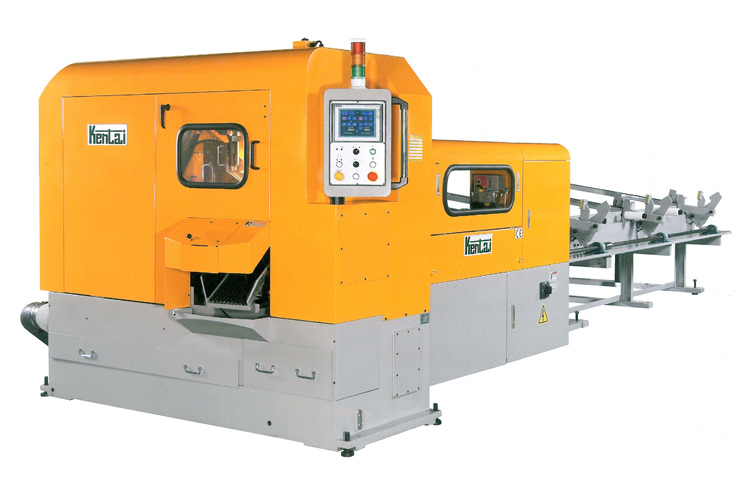

Photo of KTC 150
  • High production fully automatic Sawing machines KTC series for ferrous and non ferreous materials.
  • Heavy duty pivot arm saw head. Servo feed saw head optional
  • PLC control 7.7” color touch screen with alarm message display
  • Infinitely variable cutting speeds
  • GFC Gripper feed carriage system with servo motor and C5 grade ball screw
  • Auto-loading magazine for round and square bars with optional unloading device
  • Real time monitoring
  • Steel brush synchronized to clear out the chips on the saw blade
DESIGNATION KTC-150 NF KTC-150 SP
CUT-OFF CAPACITY
Round bar Ø 40-153 mm Ø 40-153 mm
Square bar 40-120 mm 40-110 mm
Round pipe Ø 40-153 mm Ø 40-153 mm
Square pipe 40-120 mm 40-110 mm
SAW HEAD & SPINDLE
TCT Disc MD Ø 480 x 2.7 t mm Ø 460 x 2.7 t mm
Disc HSS Ø 450x5 t mm
Rotation speed 1000-3.200 rpm 10-160 rpm
Chip removal Steel brush disc Steel brush disc
MOTOR
Spindle motor Siemens 15 kW 4 poles
Servomotor/GFC 2,14 kW
Servomotor Saw 5 kW
Hydraulic pump 3.75 Kw 4 poles
Coolant pump 0.19 kW 4 poles
HYDRAULIC EQUIPMENT
Working pressure 100 bar
Tank capacity 100 liters
PNEUMATIC EQUIPMENT
Working pressure 4-6 bar
Electric power 14kW
DIMENSION & WEIGHT
Dimension 7300 x 2900 x 1900
Net weight 4000 Kg. 4250 Kg.
