KTC-100: HIGH SPEED CARBIDE SAWING MACHINES
WITH CNC CONTROL

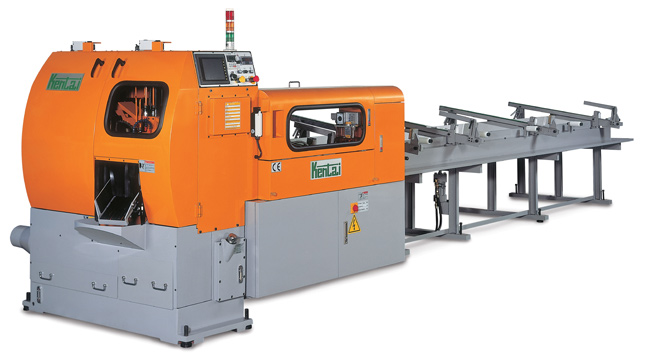

Photo of KTC 100

Download Complete
Specs. Table

Image gallery

Photo of KTC 100 Photo of KTC 100 Photo of KTC 100 Photo of KTC 100 Photo of KTC 100
  • High production fully automatic Sawing machines KTC series for ferrous and non ferreous materials.

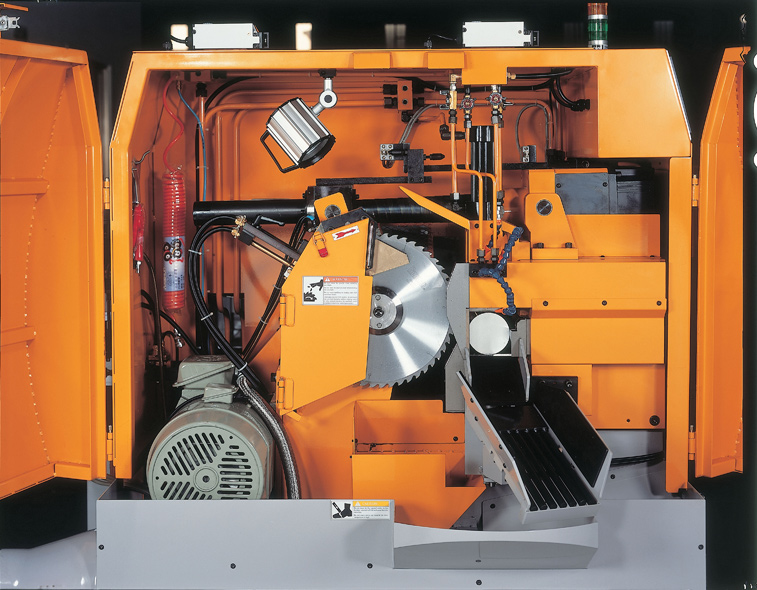

  • Heavy duty pivot arm saw head. Servo feed saw head optional

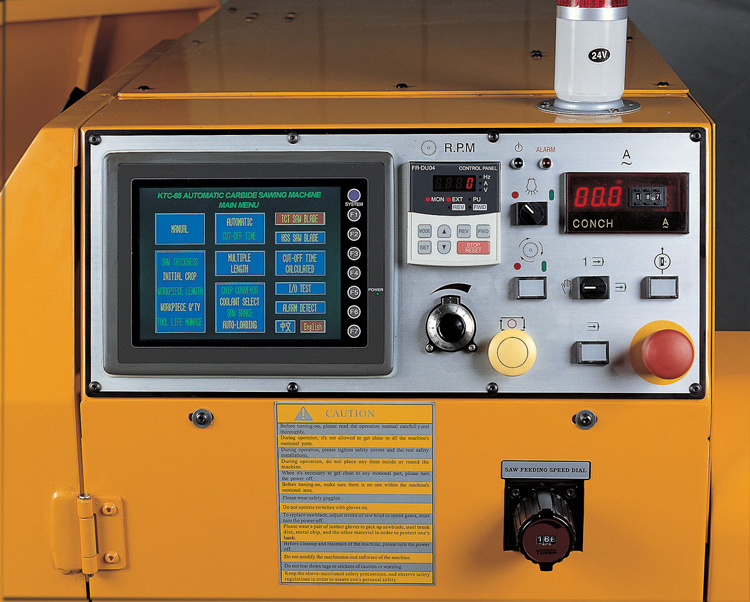

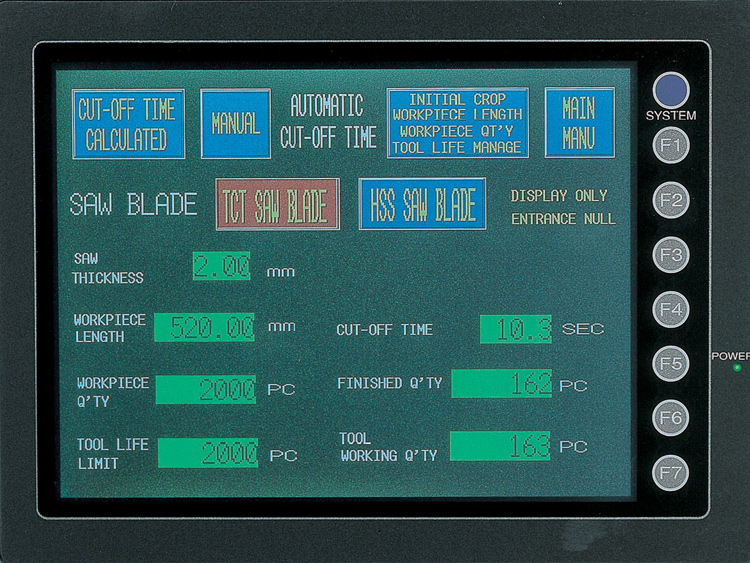

  • PLC control 7.7” color touch screen with alarm message display
  • Infinitely variable cutting speeds

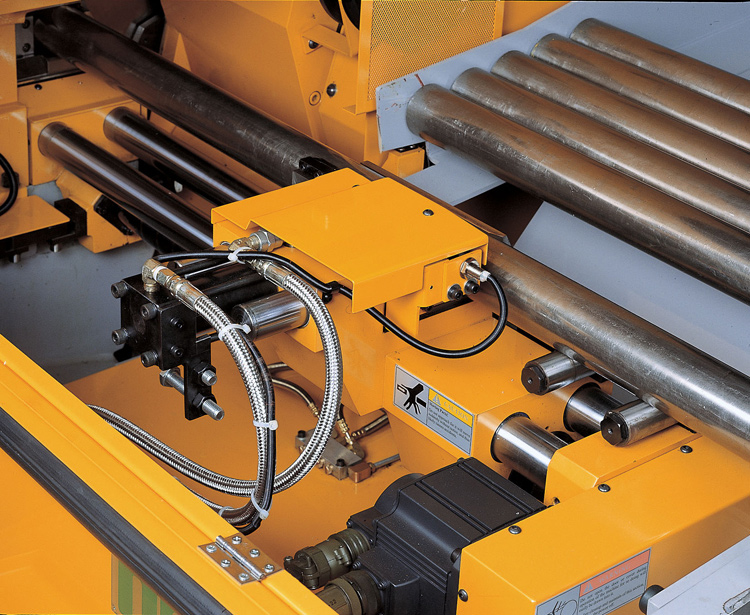

  • GFC Gripper feed carriage system with servo motor and C5 grade ball screw
  • Auto-loading magazine for round and square bars with optional unloading device
  • Real time monitoring
  • Steel brush synchronized to clear out the chips on the saw blade
DESIGNATION KTC-100NF
CUT-OFF CAPACITY
Round Bar Ø 10-100 mm
Square Bar 10-80 mm
SAW HEAD & SPINDLE
TCT Disc MD Ø 355 x 2.0 t mm
Rotation Speed 1600/4000 rpm
MOTOR
Spindle motor 11.25 kW 2 p
HYDRAULIC EQUIPMENT
Working pressure 70 bar
Tank capacity 90 liters
PNEUMATIC EQUIPMENT
Working pressure 4-6 bar
Electrical power 18 kW
DIMENSIONS & WEIGHT
Dimension 6966 x 1655 x 1845
Net weight 2700 Kg.
